Profiles Guide

Recommended Workflow: Use the UI

Use the bravo app as the primary editing workflow.

• The app loads profile YAML files from profiles/.
• The editor updates in memory while you work.
• Save YAML writes the changes back to the profile file.

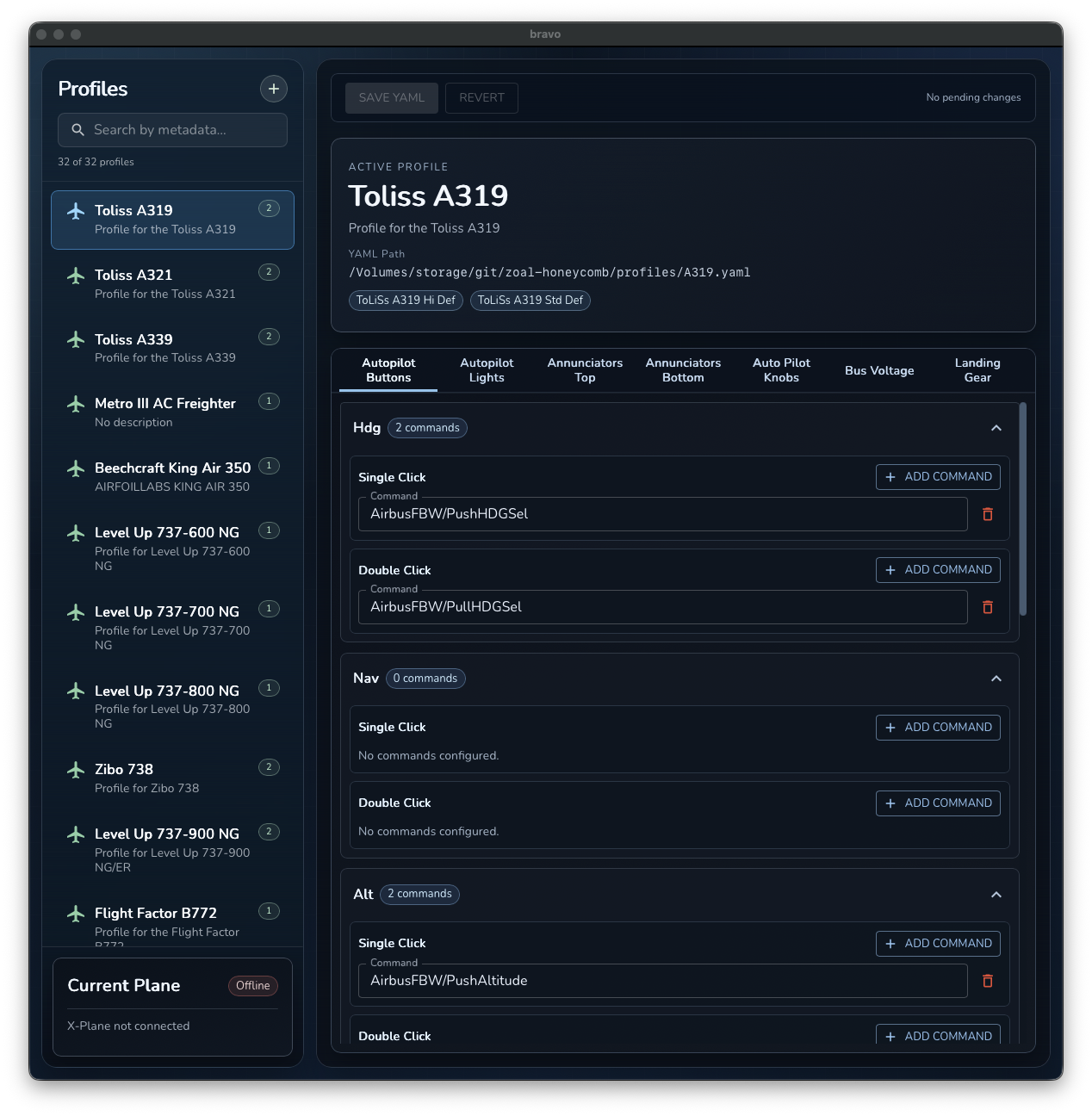

UI Editing Walkthrough

1. Launch bravo and select a profile from the left sidebar.
2. Confirm the active profile card in the editor area.
3. Edit each tab as needed.
4. Click Save YAML.
5. Test behavior in X-Plane.

Tab Reference

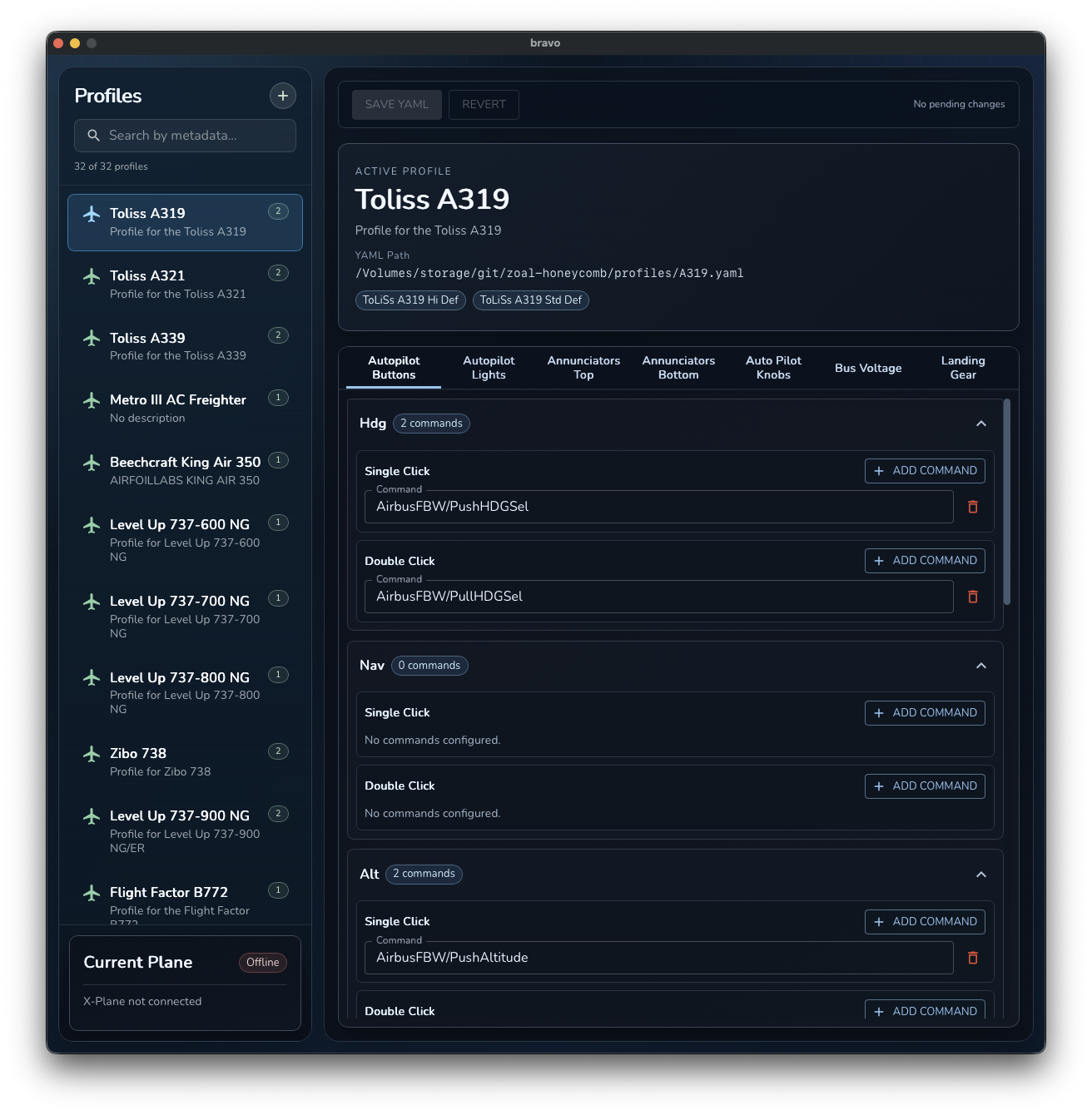

Autopilot Buttons

Maps buttons.<key>.single_click[] and buttons.<key>.double_click[].

Use this tab for AP button command mapping:

• hdg, nav, alt, apr, vs, ap, ias, rev
• Add multiple commands per click mode when needed.

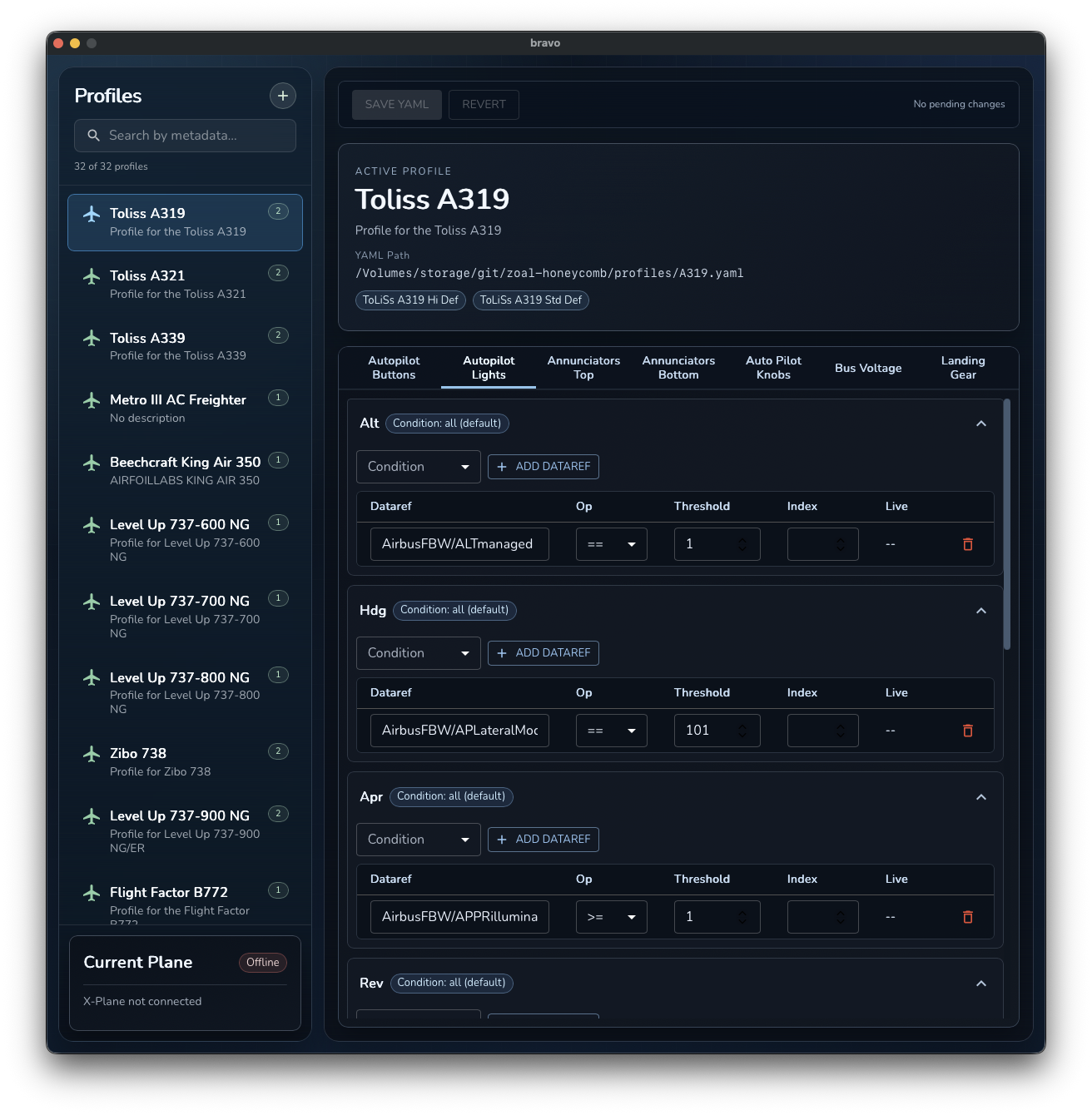

Autopilot Lights

Maps AP status LEDs under leds.

Typical keys in this tab:

• alt, hdg, apr, rev, nav, vs, ap, ias

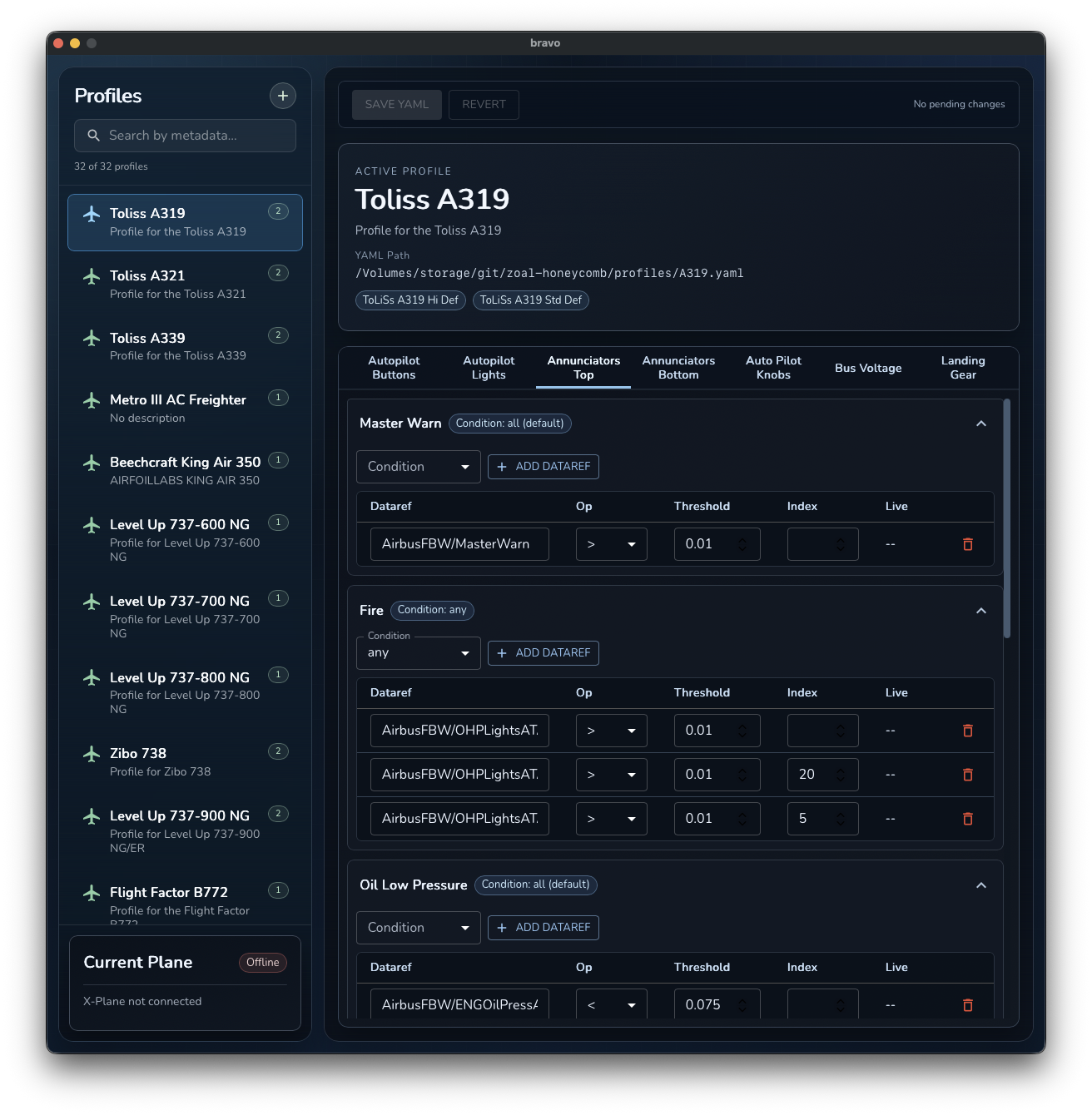

Annunciators Top

Maps the top annunciator LED row in leds.

Typical keys:

• master_warn, fire, oil_low_pressure, fuel_low_pressure, anti_ice, eng_starter, apu

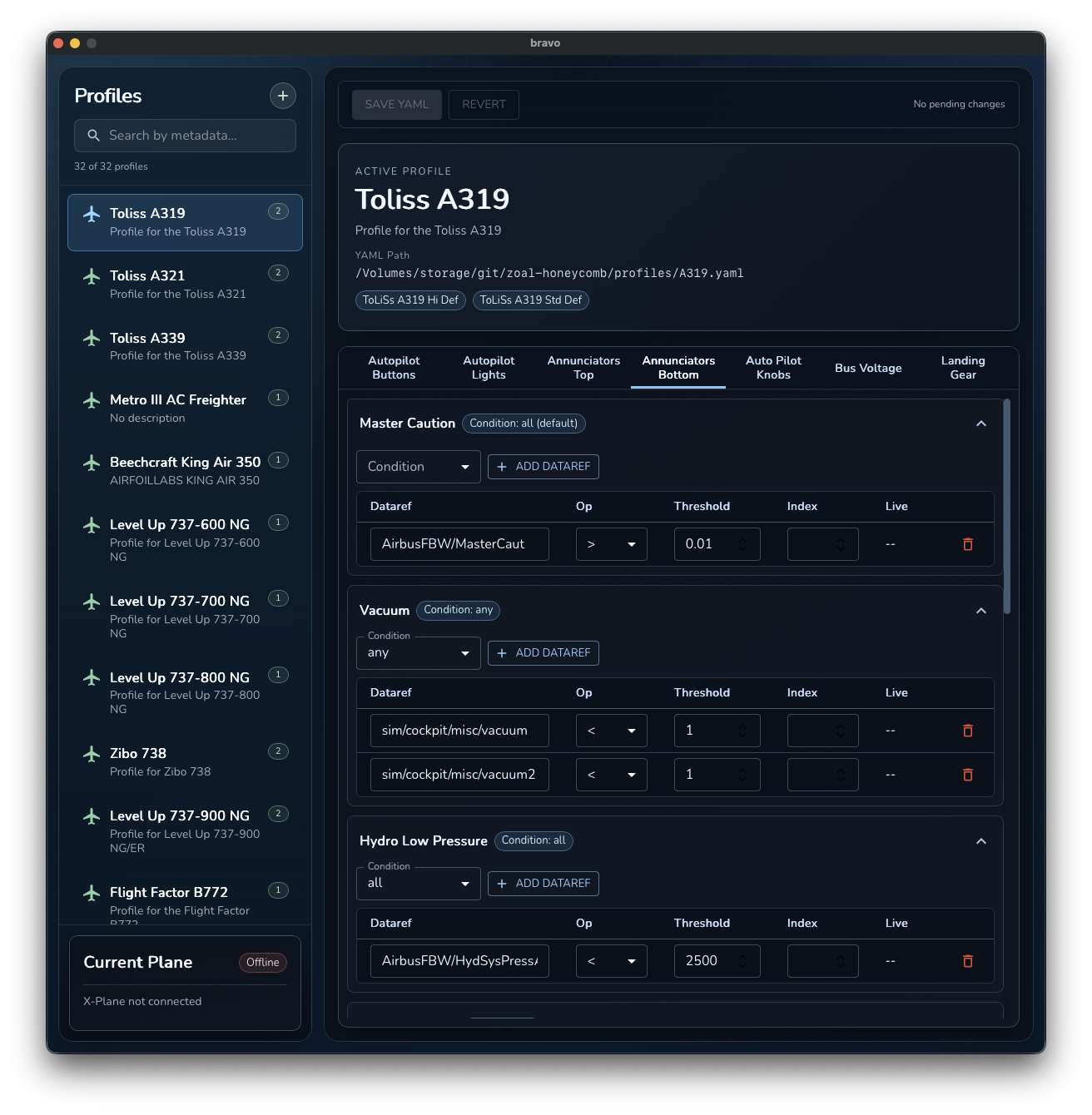

Annunciators Bottom

Maps the bottom annunciator LED row in leds.

Typical keys:

• master_caution, vacuum, hydro_low_pressure, aux_fuel_pump, parking_brake, volt_low, doors

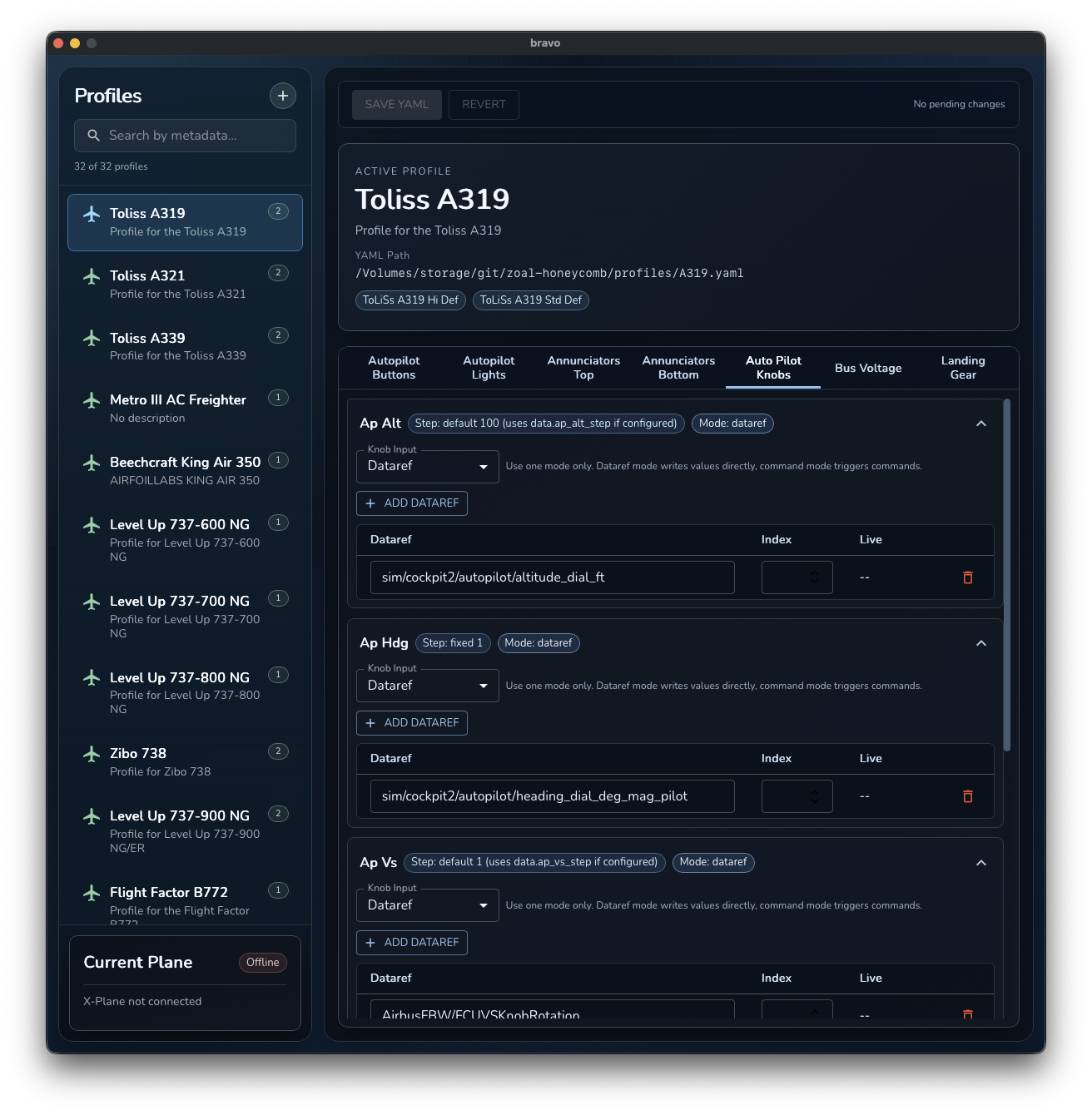

Auto Pilot Knobs

Maps encoder behavior under knobs.

Typical keys:

• ap_alt, ap_hdg, ap_vs, ap_crs, ap_ias

Each knob can use:

• Dataref mode (datarefs)
• Command mode (commands)

AP Rotary Steps

Maps AP rotary step sizing under data.

Use this tab to configure:

• ap_alt_step
• ap_vs_step
• ap_ias_step

Each step can use:

• Fixed value (value)
• Dataref source (datarefs[0])

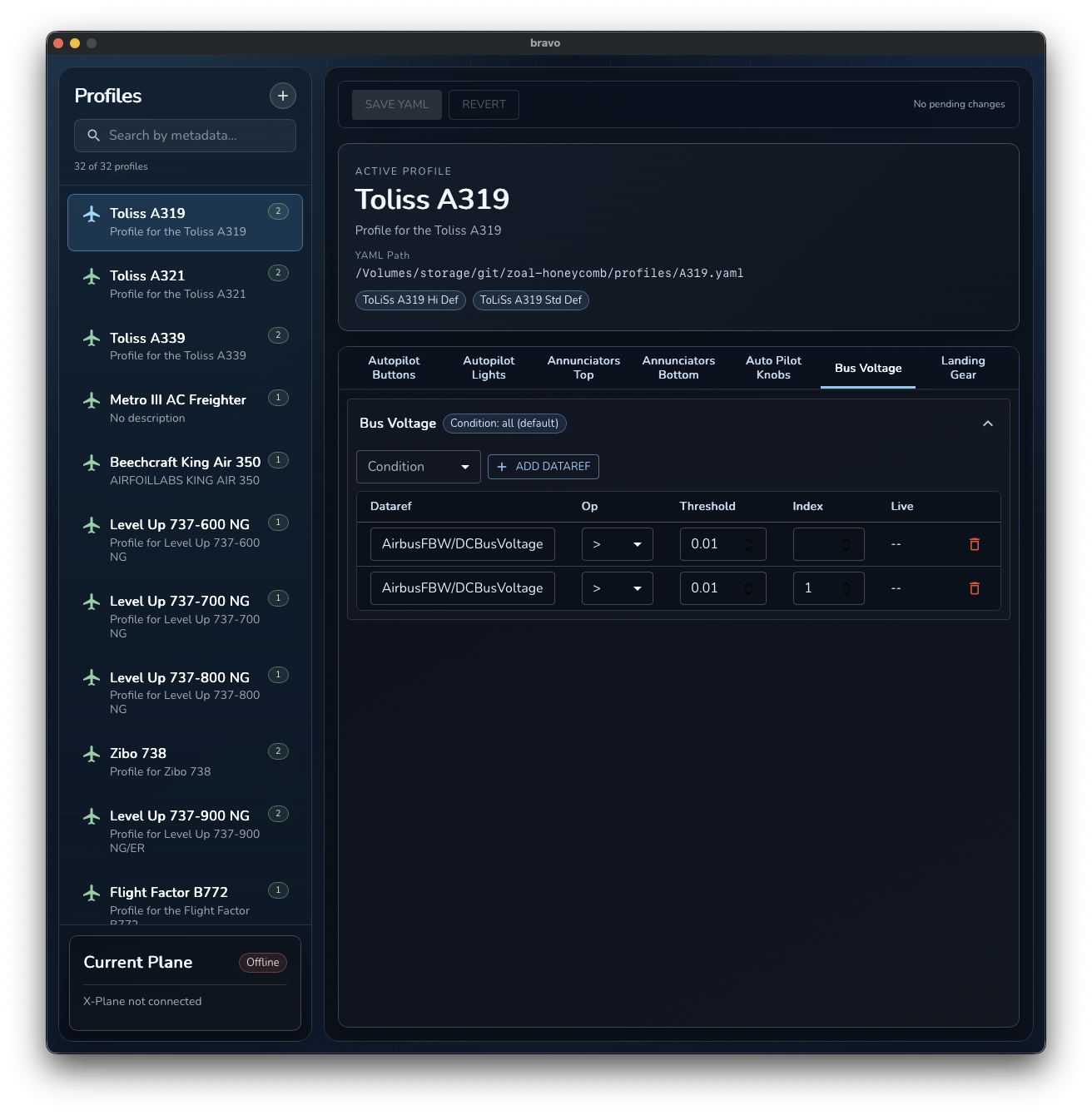

Bus Voltage

Controls whether the aircraft is considered powered on (conditions.bus_voltage).

Use this tab to define power-on datarefs and thresholds.

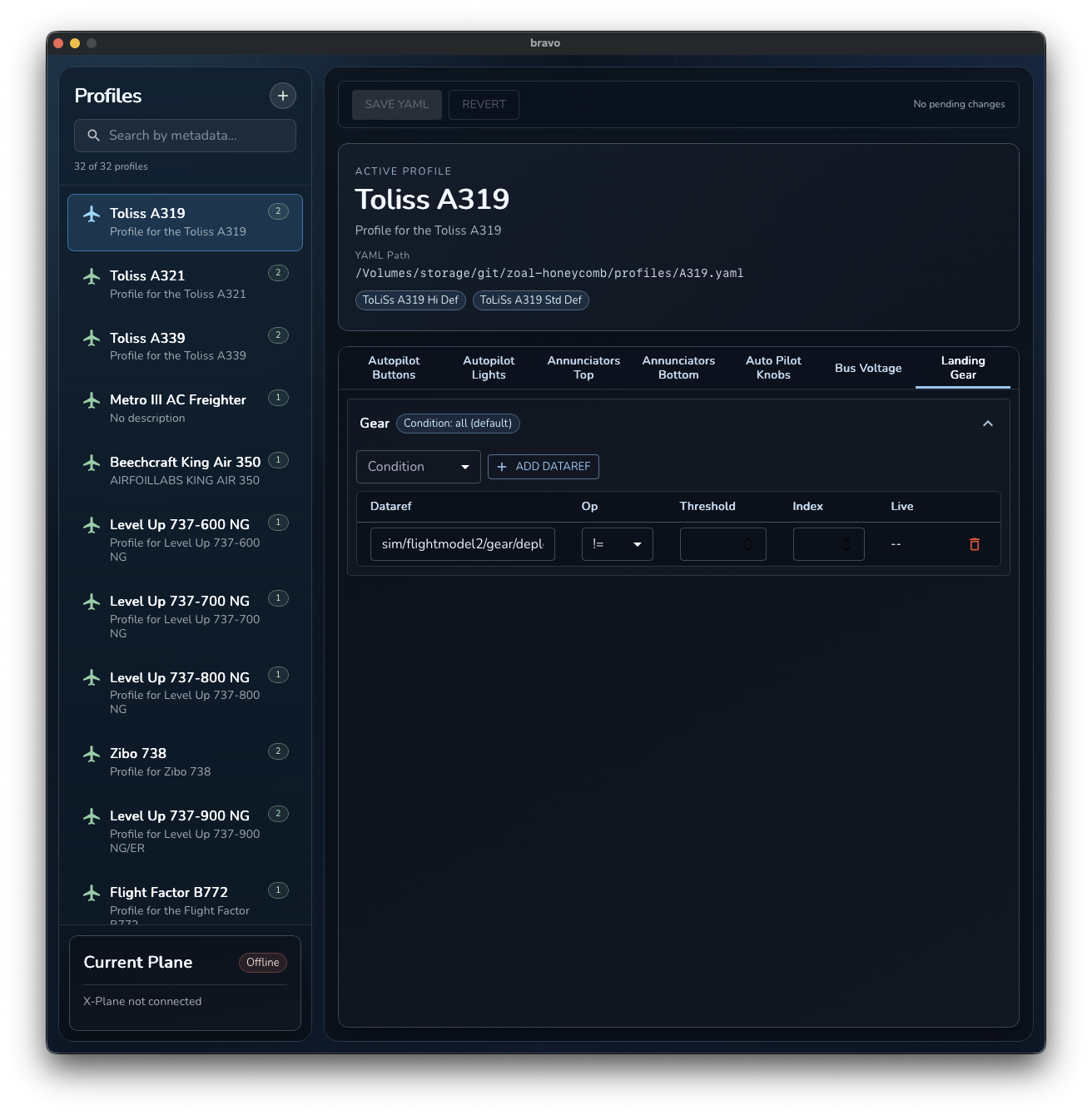

Landing Gear

Configures the gear indicator behavior in leds.gear.

Revert and Save

• Revert discards unsaved edits for the current profile.
• Save YAML persists current tab changes to the profile file.

Profile selection logic

At runtime, profile selection is:

1. Read ICAO from sim/aircraft/view/acf_ICAO.
2. Try exact file: profiles/<ICAO>.yaml.
3. If multiple files share ICAO prefix, match exact aircraft UI name (sim/aircraft/view/acf_ui_name) against metadata.selectors.

Example:

• ICAO C172 can use C172 G1000.yaml and C172 Steam.yaml.
• metadata.selectors picks the correct variant.

Advanced topic: edit YAML directly

Direct YAML editing is still supported for bulk edits and scripting workflows.

Main top-level keys

• metadata
• buttons
• knobs
• leds
• conditions
• data

Minimal advanced template

metadata:
  name: "<display name>"
  description: "<optional description>"
  selectors:
    - "<exact aircraft UI name>"

buttons:
  hdg:
    single_click:
      - command_str: "<xplane/command>"
    double_click:
      - command_str: "<xplane/command>"

knobs:
  ap_hdg:
    datarefs:
      - dataref_str: "<xplane/dataref>"

leds:
  hdg:
    datarefs:
      - dataref_str: "<xplane/dataref>"
        operator: "=="
        threshold: 1

conditions:
  bus_voltage:
    datarefs:
      - dataref_str: "sim/cockpit2/electrical/bus_volts"
        operator: ">"
        threshold: 0.01

YAML validation checklist

1. File name matches ICAO or starts with ICAO for variants.
2. metadata.selectors exactly matches X-Plane UI aircraft name.
3. command_str values exist in X-Plane command list.
4. Each LED/condition dataref has operator and threshold.
5. Use index for array-style datarefs when required.

For reference examples, see profiles in the repo: profiles/
